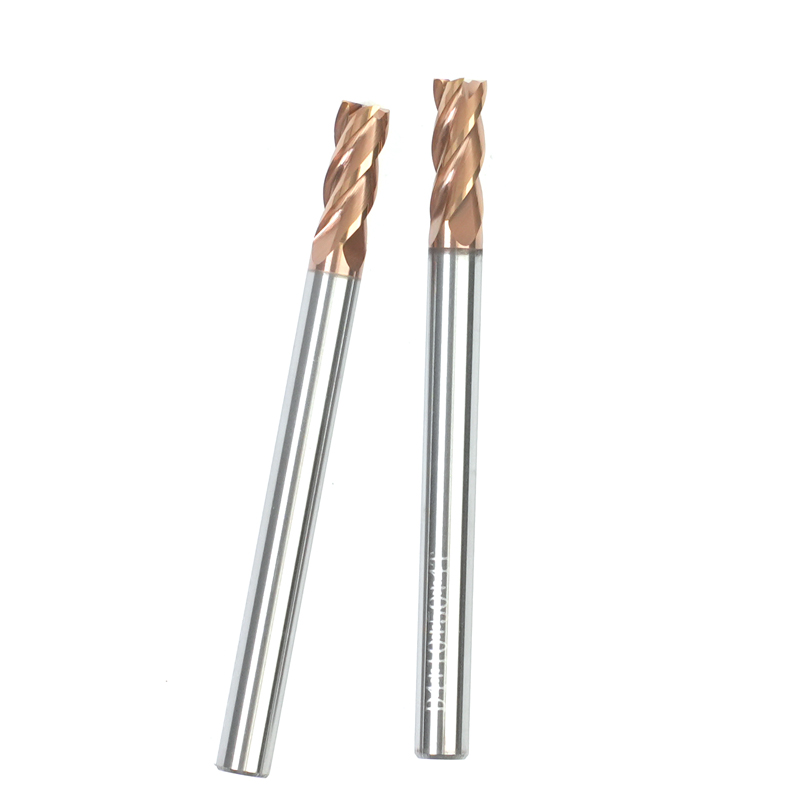

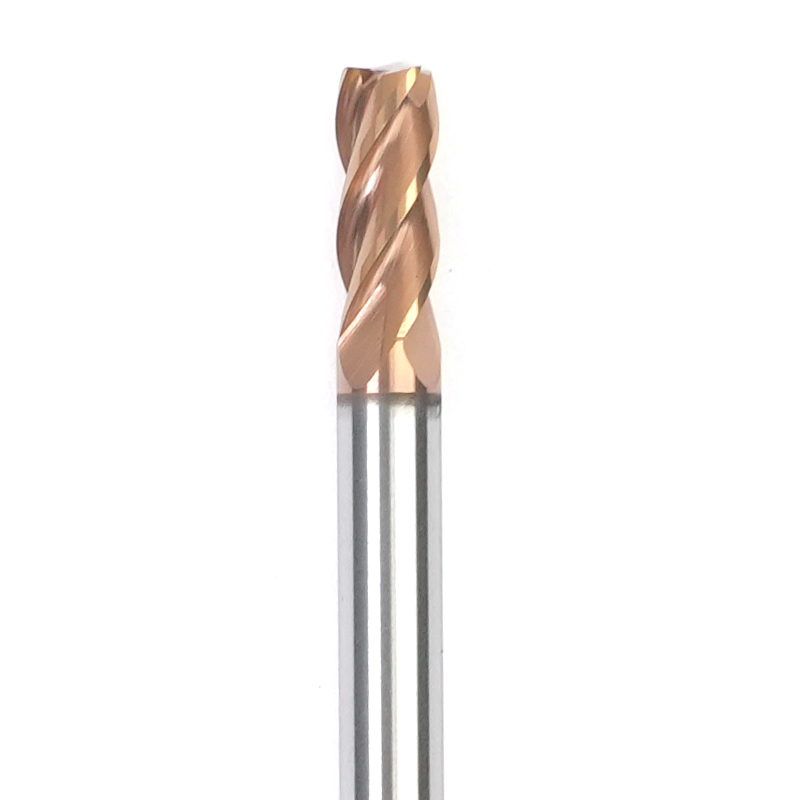

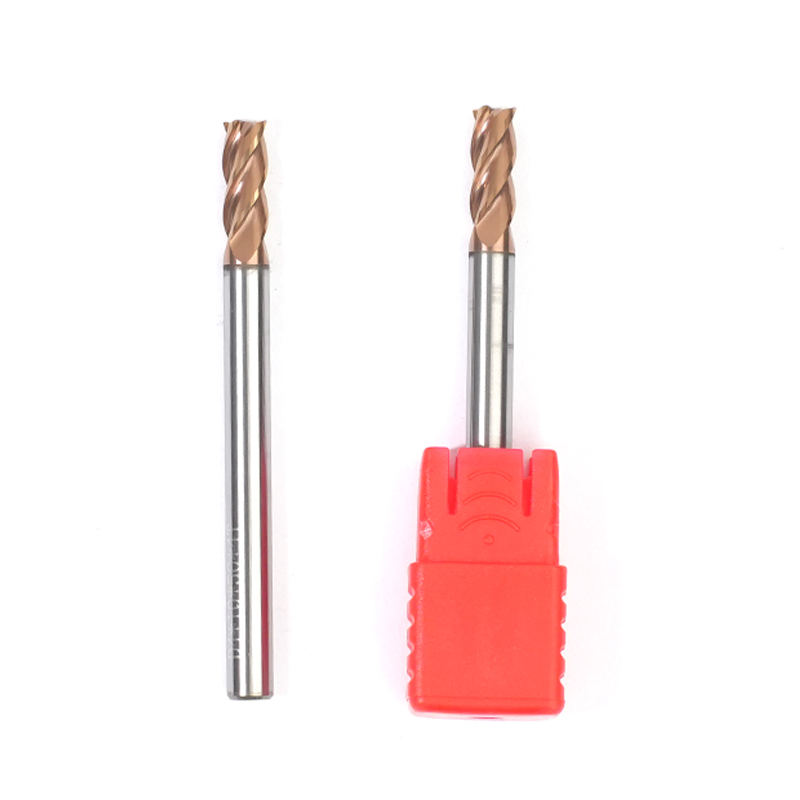

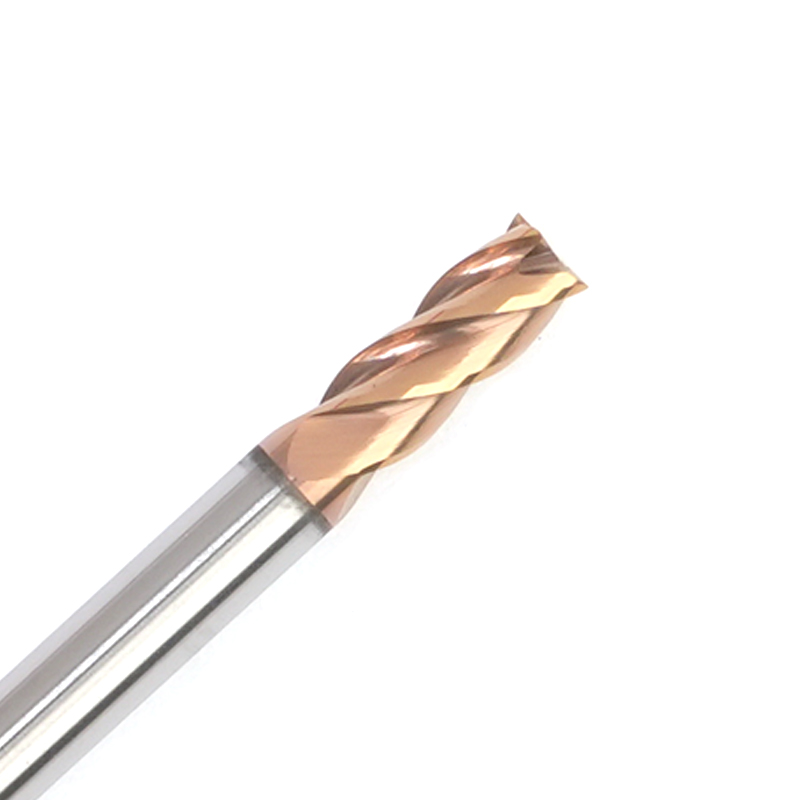

Fraise Carbure Chez Sumtools D4X50 HRC55 4 Flute
DH90.00
Product Name | Flat End Mill | |||
Material | 100% New Raw Material Carbide | |||
Flute | 2 /4Flutes | |||
Cobalt content | 10% | |||
Customized | Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization | |||
Coating Thickness | 4-6um | |||
Shank Diameter | 1mm-20mm | |||
Overall Length | 50mm-200mm | |||
Application | General-purpose operation Slotting, Profiling | |||
Working Machine | CNC (computer numeric controlled) tool and cutter grinder machines | |||
Work-piece material | Carbon Steel. Cast lron. Alloyed Metal, Brass,Bronze etc,Die steel | |||
1. Product Name: Chuangde Solid Carbide Endmill CNC Cutter Tool For Metal
2. Standard size: 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. Advantages: High Precision,Good Surface & Performace
4. Certification: ISO9001:2008 , Supplier Assessment Certificate
HRC45 | HRC55 | HRC60 | HRC65 |
Grain Size: 0.6um | Grain Size: 0.6um | Grain Size: 0.5um | Grain Size: 0.4um |
Co: 10 % | Co: 10 % | Co: 12 % | Co: 12.5 % |
Flexural strength: 3350N/mm2 | Flexural strength: 4000N/mm2 | Flexural strength: 4300N/mm2 | Flexural strength: 4300N/mm2 |
AlTiN | TiAlN | TiSlN | Nano | |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp | 900 | 800 | 1000 | 1200 |
Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
