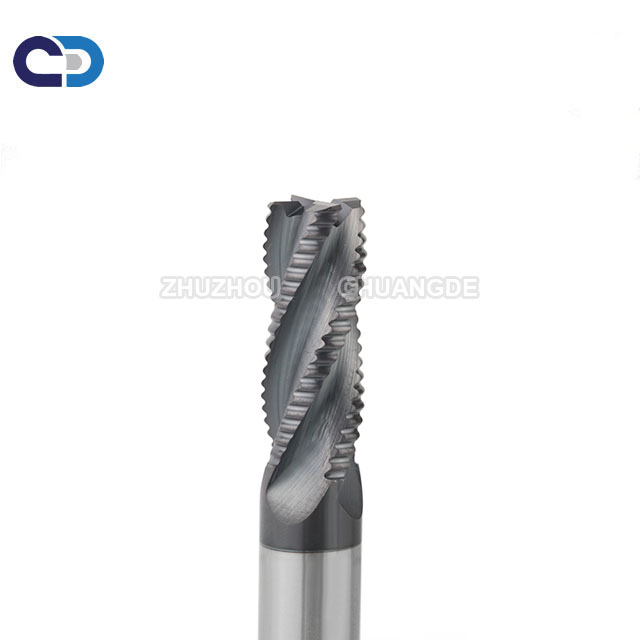

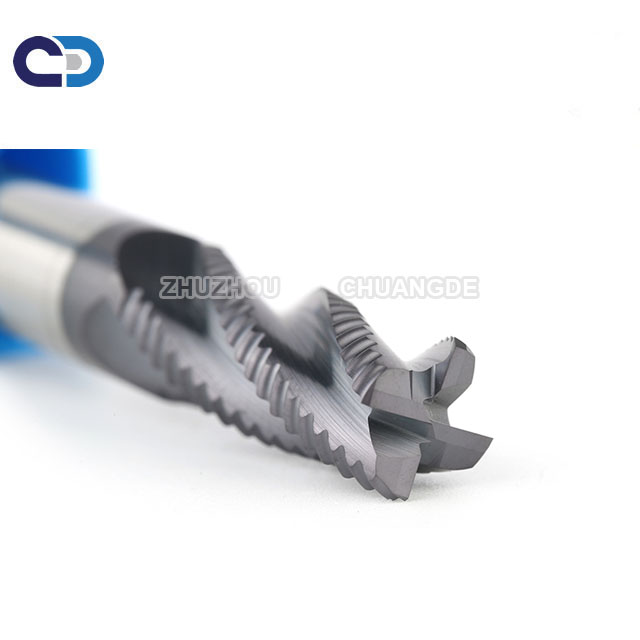

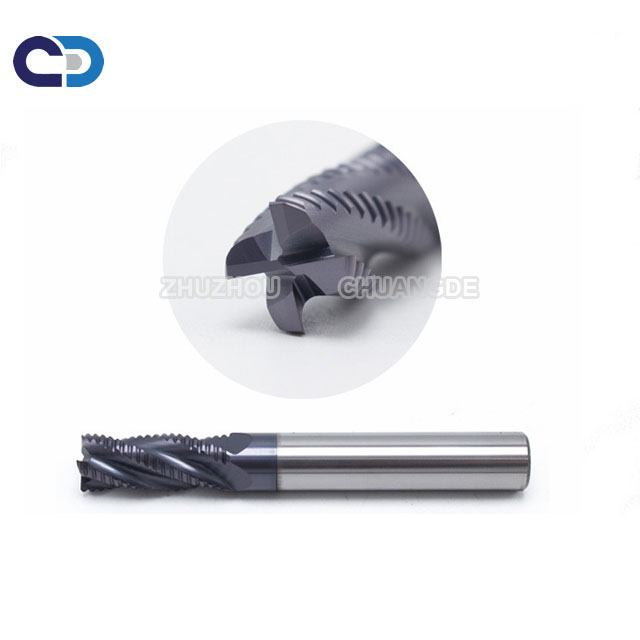

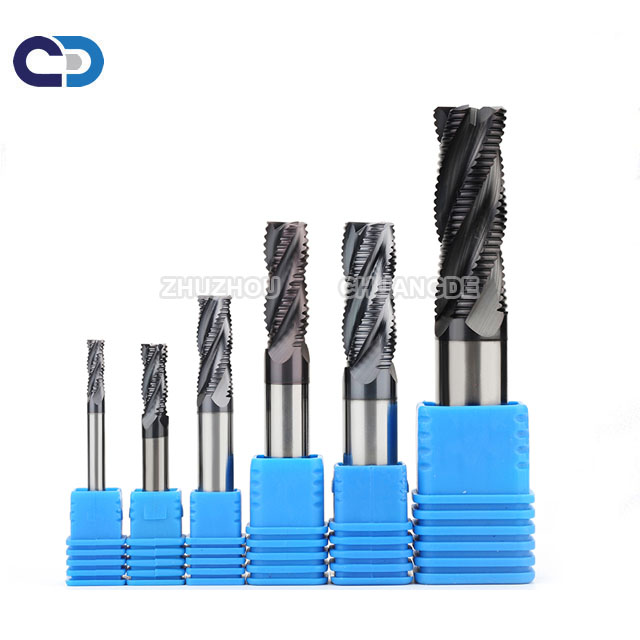

Solid Carbide End mills hard alloy 4 Flute Rough Endmill tool coating
DH180.00
Product Description of Solid Carbide Endmills Carbide 4 Flute end mill Rough Endmill tool coating
1.Coating:Ultra-fine grain coating technology provides better wear resistance and toughness.
45 ° black coating ，55 ° Fuchsia or bronze coating
58-60° bronze coating ，63-70 ° nano blue coating
2. Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.
3. Application fields:Precise mould,automobile,aerospace,rail.
4. Scope:Cemented carbide inserts for turning,milling,grooving,drilling, and aluminium machining.
Product Name | CD CNC 4 Flutes Flat End Mill Carbide Cutting Tools With Blue Coating | ||
Material | Tungsten Carbide,Solid Carbide,Cemented Carbide | ||
HRC | 45/55/58/60/65/70 | ||
Product Type | Solid Carbide Flat End Mills | ||
Coating | Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond | ||
Helix Angle | 10degree,15degree,25degree,35degree,45degree,55degree | ||
Size | Metric & Inch Size Based On Your Requirement | ||
Tolerance | h6 | ||
Suitable For | Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc. | ||
Dimension
Tungsten carbide End Mill | |||
Standard Dimension | 1.0*3*50，1.5*4*50，2.0*6*50，2.5*8*50，3.0*8*50，3.5*10*50，4*10*50，4*15*75，4*20*100，5*13*50，6*15*50，6*20*75，6*30*100，8*20*60，8*25*75，8*35*100，10*25*75，10*40*100，12*30*75，12*45*100，14*35*80，14*40*100，16*40*100，18*40*100，20*40*100，6*30*150，8*40*150 | ||
Super Raw Material
Item | HRC50 | HRC55 | HRC60 | HRC65 |
Grade | YG10X | YL10.2 & WF25 | Germany K44 &K40 | Sandvik H10F |
Details | Grain size 0.7um, Co10%, Flexural strength 3320N/mm2 | Grain size 0.6um, Co10%, Flexural strength 4000N/mm2 | Grain size 0.5um, Co12%, Flexural strength 4300N/mm2 | Grain size 0.5um, Co10%, Flexural strength 4300N/mm2 |
Super Coating
Coating Classifying and Advantage | |||||
Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
Color | Black | Dark Purple | Copper | Blue | |
Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision Cutting | |
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | |||
Most suitable for carbide cutting tools, turning insert | |||||
