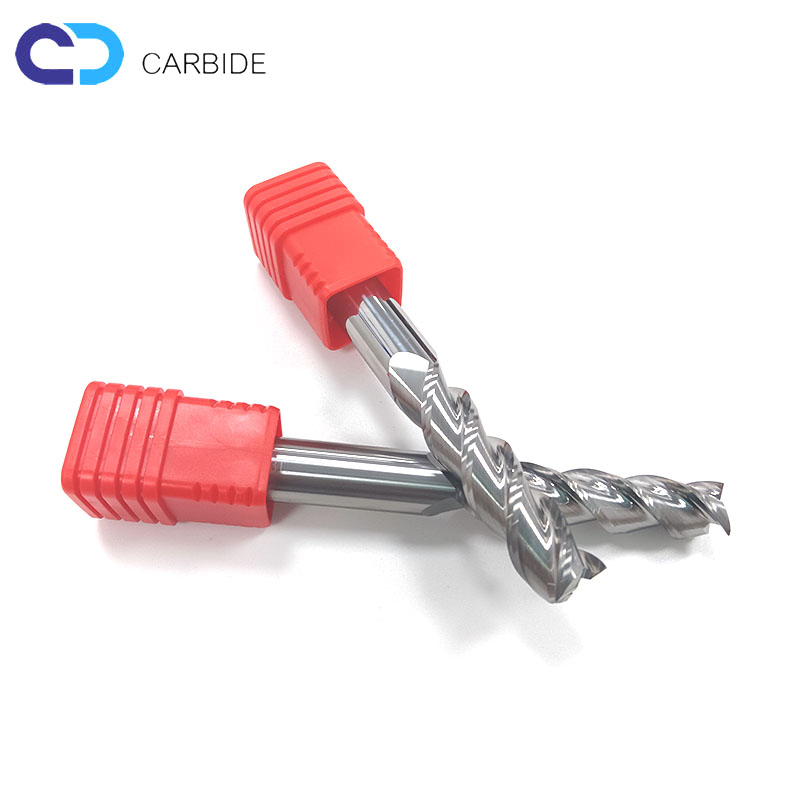

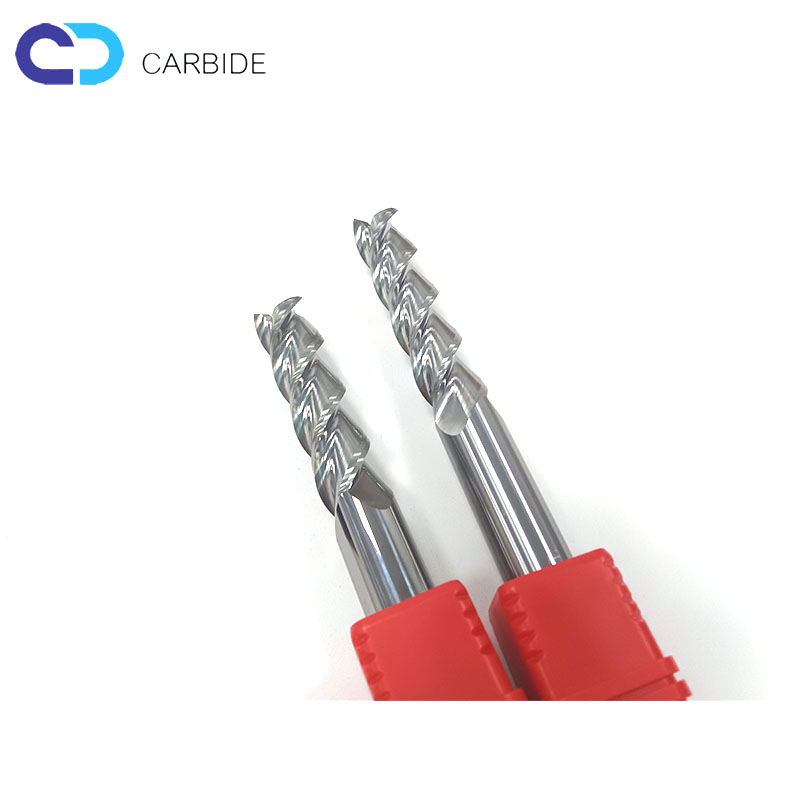

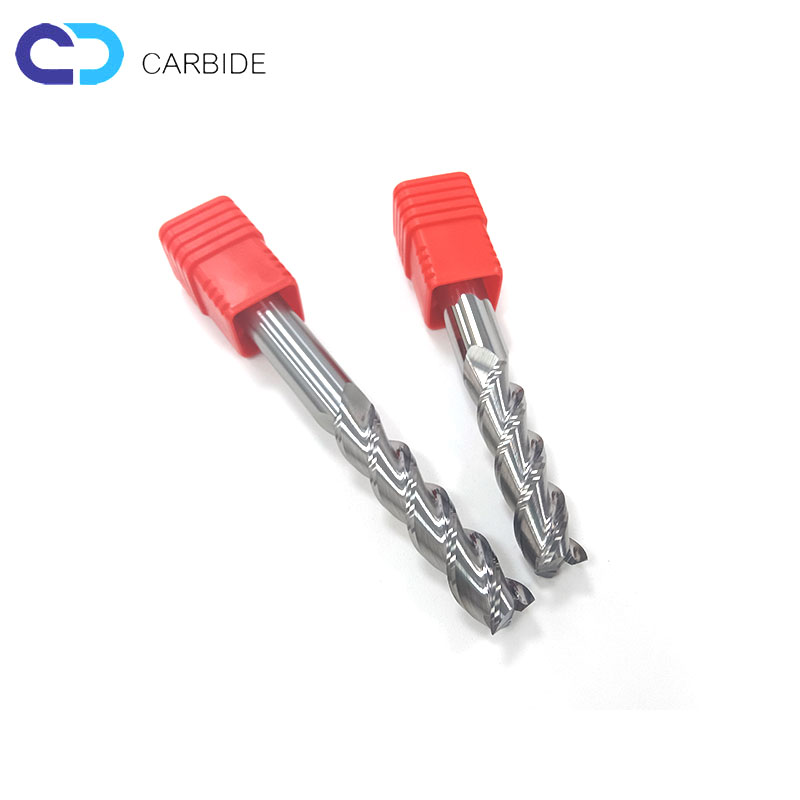

Tungsten carbide end mills 55HRC 3 flutes for Aluminum cutting
DH190.00
Product Description:
1.Coating:Ultra-fine grain coating technology provides better wear resistance and toughness.
2. Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.
3. Application fields:Precise mould,automobile,aerospace,rail.
4. Scope:Cemented carbide inserts for turning,milling,grooving,drilling, and aluminium machining.
Advantages and Application:
1.specific chipbreaker can effectively control chipping flow direction, which achives easy and fast cutting and improve the inserts life.
2.small cutting force reduces the cutting vibration and obtains high quality finished workpiece surface.
3.the combination of optimized substrate and coating increases the binding force, reducing the accidental processing failure caused by coating disbonding in cutting machine.
Our Sizes:
Size | Cutting Dia(D1) | Cutting Length(C) | Shank Dia(D) | Whole Length(L) |
1.0*3*50 | 1 | 3 | 4 | 50 |
1.5*4.5*50 | 1.5 | 4.5 | 4 | 50 |
2.0*6*50 | 2 | 6 | 4 | 50 |
2.5*7*50 | 2.5 | 7 | 4 | 50 |
3.0*9*50 S4 | 3 | 9 | 4 | 50 |
3.0*9*50 | 3 | 9 | 3 | 50 |
3.5*10*50 | 3.5 | 10 | 4 | 50 |
4*12*50 | 4 | 12 | 4 | 50 |
4*15*75 | 4 | 15 | 4 | 75 |
4*20*100 | 4 | 20 | 4 | 100 |
5*13*50 | 5 | 15 | 5 | 50 |
5*15*50 S6 | 5 | 18 | 6 | 50 |
6*18*50 | 6 | 18 | 6 | 50 |
6*25*75 | 6 | 25 | 6 | 75 |
6*30*100 | 6 | 30 | 6 | 100 |
8*24*60 | 8 | 24 | 8 | 60 |
8*25*75 | 8 | 25 | 8 | 75 |
8*35*100 | 8 | 35 | 8 | 100 |
10*30*75 | 10 | 30 | 10 | 75 |
